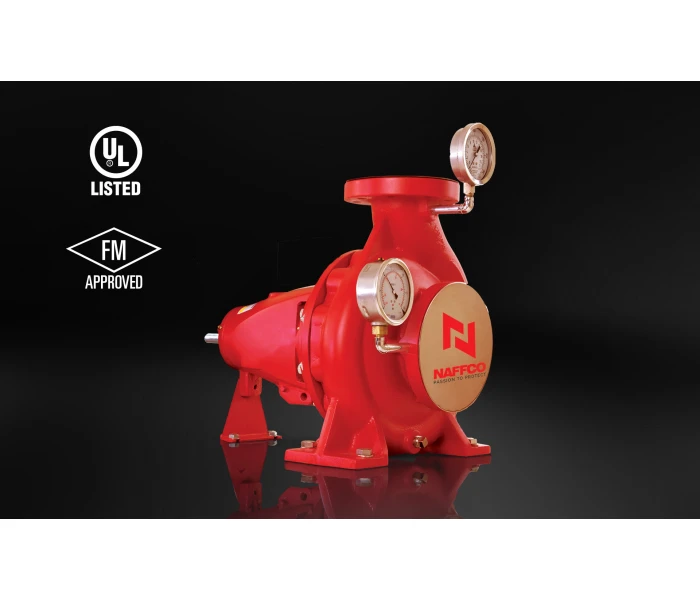

NF-E Series | NAFFCO End Suction Fire Pump
UL Listed NFPA 20 end suction fire pump sets
NAFFCO NF-E series horizontal end suction fire pumps cover capacities from 50 to 750 US GPM with performance characteristics per NFPA 20. Pump sets are offered with electric motor or diesel engine drives and as fully pre-packaged fire pump systems complete with controllers and jockey pumps. Each pump undergoes hydrostatic strength testing and operational run tests per NFPA 20, UL 448 and FM 1319 before dispatch. An example rating is the NF-E 32-20 delivering 50 US GPM at 50-87 PSI at 2900 RPM.
Brand: NAFFCO · Category: Fire Pumps
Key features
- Factory tested before dispatch
- Pre-packaged pump room options
- Electric and diesel configurations
- NFPA 20 compliant performance
- One-year standard warranty
Specifications
| Capacity range | 50–750 US GPM |
|---|---|
| Type | Horizontal end suction, single stage |
| Drives | Electric motor or diesel engine |
| Design standard | NFPA 20 |
| Testing | UL 448, FM 1319 run tests |
Contact Safety Shops for pricing, delivery and project support in the UAE.
