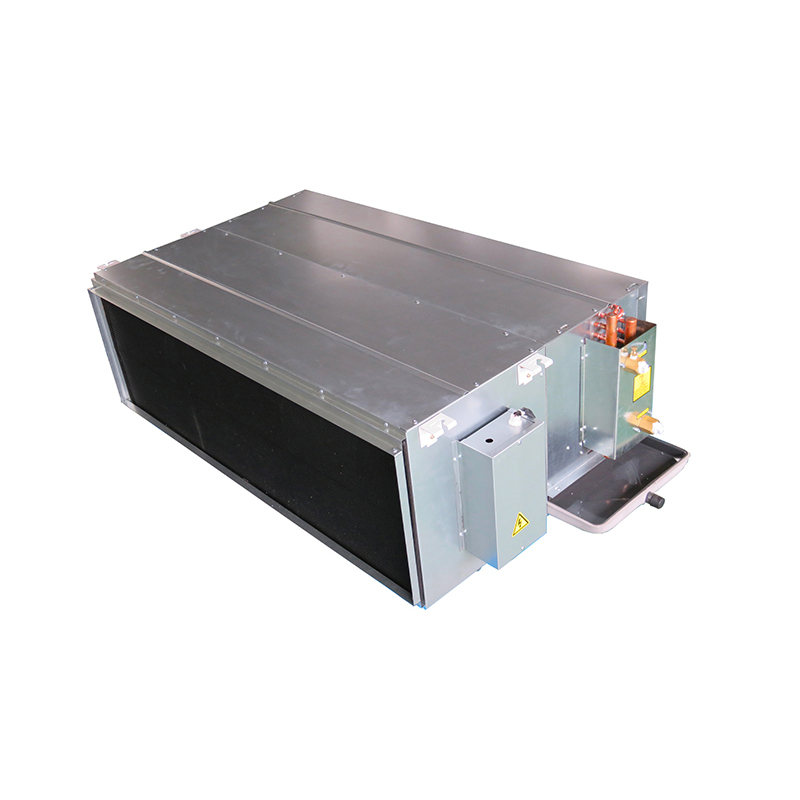

High Static Pressure Duct Type Fan Coil Unit (LBH-25-1R-ACSCD)
High static pressure airflow for super high-rise buildings.
The unit features an elegant flame-plated design, suitable for both concealed installation and decorative use. It delivers high static pressure for long-distance air supply. Made with high-quality purple copper, it ensures excellent thermal efficiency, strength, and rigidity, ideal for super high-rise buildings. Premium panels with a plastic-sprayed smooth, shiny, and rust-resistant finish use a one-off pressed forming technique, with no welding lines for effective heat preservation and a compact, leak-free tray.
Brand: Liberty · Category: HVAC & Cooling
Key features
- Elegant flame-plated design
- High static pressure for long-distance air supply
- High-quality purple copper coil
- Rust-resistant plastic-sprayed panels
- Seamless one-off pressed drain tray
Specifications
| Rated Power Supply | 220-240V / ~ / 50Hz |
|---|---|
| Rated Power | 550 W |
| Rated Current | 2.50 A |
| Capacity | Cooling 48000 Btu/hr, Heating 49132 Btu/hr |
| Water Flow Rate | 2.46 m3/hr |
| Air Flow Rate | 2720 m3/hr |
| Max Working Pressure | 16 bar (1.6 MPa) |
| Mass | 56 kg |
Contact Safety Shops for pricing, delivery and project support in the UAE.
