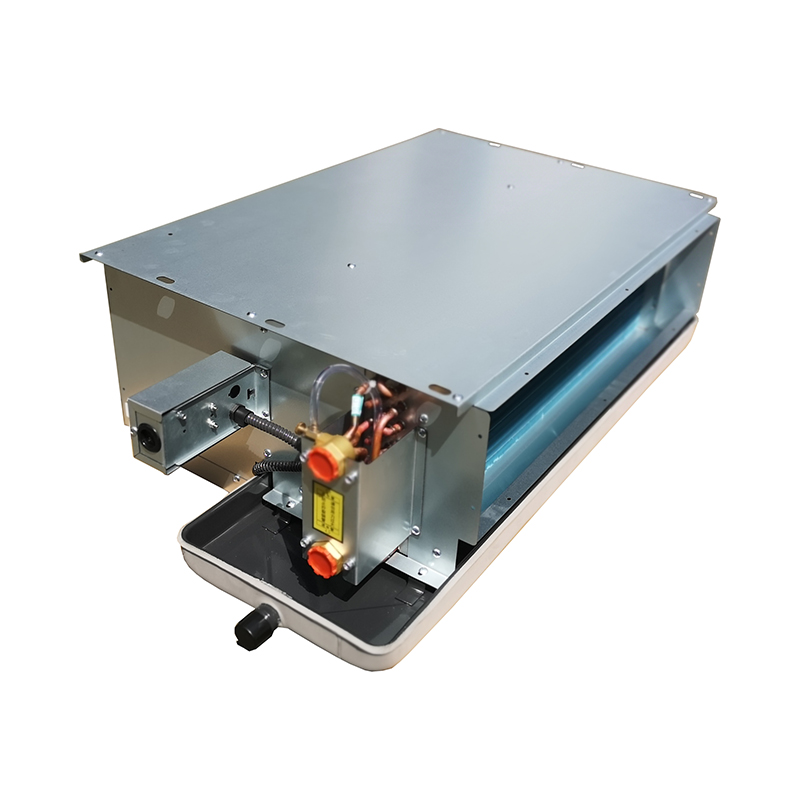

Ceiling Conceal Ducted Type Fan Coil Unit (LBH-25-0R-ACSCD)
Quiet, concealed ducted comfort with premium copper coils.
The fan coil unit features high-quality fans with precise dynamic balance for stable, low-noise operation. Its structure uses high-grade tensile plates with a plastic-sprayed, smooth, shiny, and rust-resistant finish. The one-off pressed tray is seamless, flat, and compact, preserving heat and preventing leakage. Built with high-quality purple copper, it offers excellent thermal conductivity, strength, and rigidity, ideal for super high-rise buildings.
Brand: Liberty · Category: HVAC & Cooling
Key features
- Precision dynamic-balanced fans for low noise
- High-grade tensile steel plates
- Rust-resistant plastic-sprayed finish
- Seamless one-off pressed tray prevents leakage
- High-quality purple copper coil
Specifications
| Rated Power Supply | 220-240V / ~ / 50Hz |
|---|---|
| Rated Power | 250 W |
| Rated Current | 1.13 A |
| Capacity | Cooling 36000 Btu/hr, Heating 37500 Btu/hr |
| Water Flow Rate | 1.94 m3/hr |
| Air Flow Rate | 2040 m3/hr |
| Max Working Pressure | 16 bar (1.6 MPa) |
| Mass | 33.9 kg |
