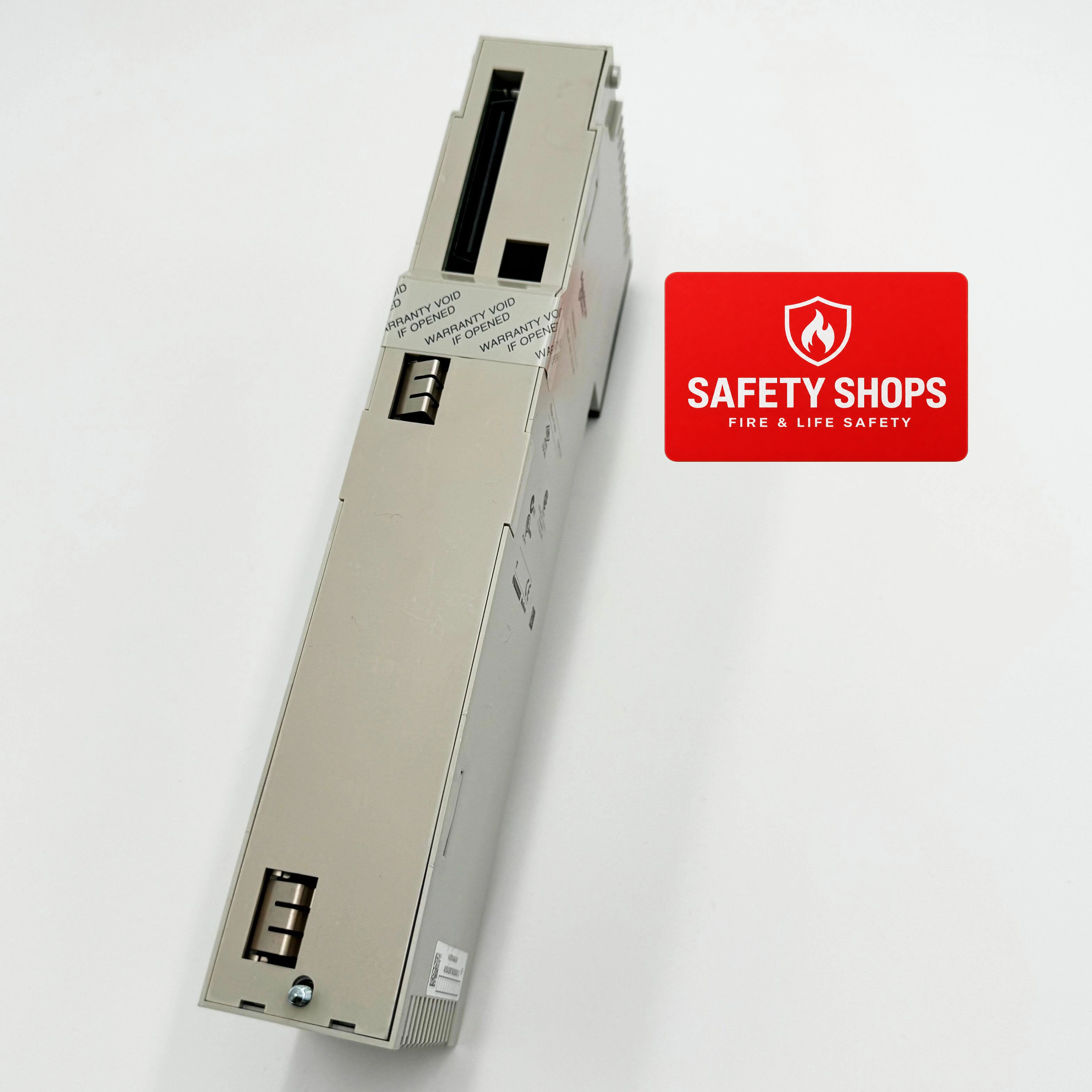

140DRA84000 | Schneider Electric Modicon Quantum 16-Point Relay Output Module

Schneider Electric · HMIs & Displays

Description The Schneider Electric 140DRA84000 is a 16-point relay discrete output module designed for the Modicon Quantum control platform. Featuring Form A (NO) relay outputs, wide voltage compatibility, high durability, and built-in surge protection, this module provides reliable performance for industrial control systems requiring flexible AC/DC output switching.     Technical Specifications Brand Schneider Electric Part Number 140DRA84000 Type Relay Discrete Output Module Platform Modicon Quantum Number of Outputs 16 Contact Type Form A (Normally Open) Output Voltage Range 5–30 VDC, 30–150 VDC, 20–250 VAC Minimum Load ≥50 mA (5–30 VDC or 20–250 VAC) Max Load Current 2 A (AC/DC at 60°C), 300 mA (30–150 VDC resistive) Surge Current ≤ 10 A for 10 ms Switching Capacity 500 VA resistive Response Time ≤10 ms ON, ≤20 ms OFF Mechanical Life 10 million cycles Electrical Life Up to 200,000 cycles (load-dependent) Output Protection Internal 275 V varistor Isolation 1780 Vrms channel-to-channel; 2500 VDC channel-to-bus Local Signaling 16 green status LEDs; 1 red fault LED; 1 green bus LED Bus Current Requirement 1100 mA Power Dissipation 5.5 W + (0.5 × number of active points) Certifications UL508, CSA, CE, C-Tick, GOST, ABS, FM Class I Div II Module Format Standard Quantum I/O     Information About 140DRA84000 The Modicon 140DRA84000 is a robust relay output module engineered for high-performance industrial automation applications. It offers sixteen (16) normally-open Form A relay outputs with broad voltage support—from low-voltage DC to 250 V AC. The module features strong isolation ratings, long mechanical life, and reliable switching capacity, making it suitable for demanding environments. The front panel includes individual green channel LEDs for outputs 1–16, allowing easy visual status monitoring, along with a green “Active” bus LED and a red fault indicator for external fault detection. The unit integrates internal overvoltage protection using a 275 V varistor, ensuring safe operation during transient conditions. With a surge capacity of 10 A for 10 ms and resistive switching ability of 500 VA, the 140DRA84000 is built to handle tough inductive and resistive loads. Each relay output supports up to 2 A at 250 VAC/30 VDC (resistive), with high endurance ratings—up to 10 million mechanical cycles. Ideal for applications requiring isolation, reliability, and flexible control, this module is certified for global industrial standards including UL, CE, CSA, Factory Mutual, and ABS. It is also available in a conformal-coated version (140DRA84000C) for harsh environments. Key Features 16 Normally-Open Relay Outputs – Form A contact design. Wide Voltage Range – Supports 5–30 VDC, 30–150 VDC, and 20–250 VAC. High Load Capacity – Up to 2 A at 250 VAC/30 VDC per point (resistive). Surge Handling – 10 A for 10 ms surge capacity. High Durability – 10 million mechanical cycles; 50,000–200,000 electrical cycles (depending on load). Comprehensive Isolation – 2500 VDC bus-to-channel and 1780 Vrms channel-to-channel isolation. Built-In Protection – 275 V varistor overvoltage protection. LED Diagnostics – 16 green channel LEDs, fault LED, and bus activity indicator. Quantum Standard Format – Fits all Modicon Quantum racks. Certified for Harsh Industries – UL, CSA, C-Tick, GOST, ABS, FM Class I Div. II.

Brand: Schneider Electric · Category: HMIs & Displays

Key features

• 16 Normally-Open Relay Outputs – Form A contact design.
• Wide Voltage Range – Supports 5–30 VDC, 30–150 VDC, and 20–250 VAC.
• High Load Capacity – Up to 2 A at 250 VAC/30 VDC per point (resistive).
• Surge Handling – 10 A for 10 ms surge capacity.
• High Durability – 10 million mechanical cycles; 50,000–200,000 electrical cycles (depending on load).
• Comprehensive Isolation – 2500 VDC bus-to-channel and 1780 Vrms channel-to-channel isolation.
• Built-In Protection – 275 V varistor overvoltage protection.
• LED Diagnostics – 16 green channel LEDs, fault LED, and bus activity indicator.
• Quantum Standard Format – Fits all Modicon Quantum racks.
• Certified for Harsh Industries – UL, CSA, C-Tick, GOST, ABS, FM Class I Div. II.

Specifications

Contact Safety Shops for pricing, delivery and project support in the UAE.
