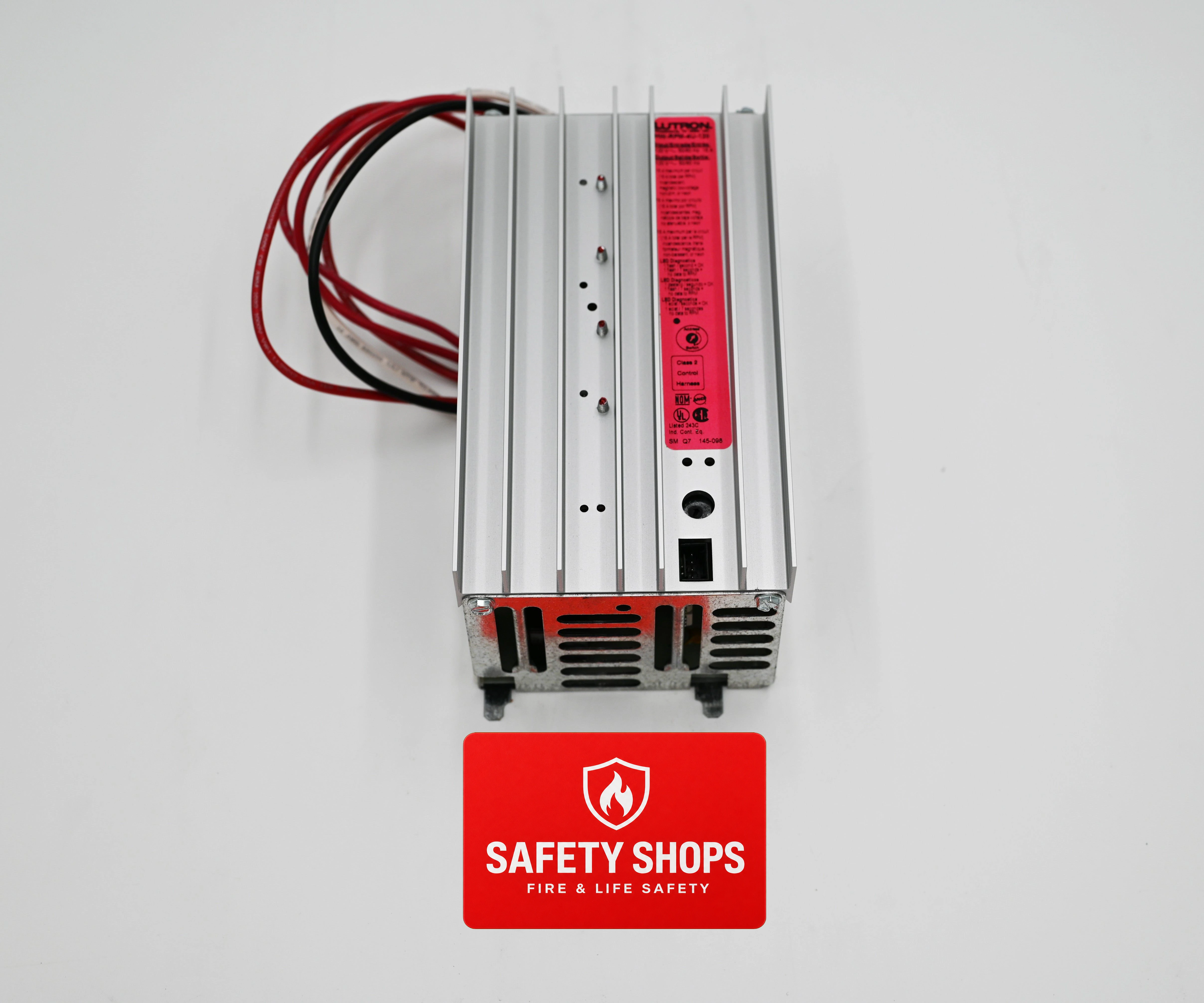

Lutron HW-RPM-4U-120 Remote Power Module 4-Zone 120VAC Lighting Control

Lutron · PLCs & Industrial Controllers

Description  The Lutron HW-RPM-4U-120 is a 4-zone remote power module designed for integration into HomeWorks or HomeWorks Interactive lighting control panels. It supports independent dimming and switching of connected lighting circuits at 120V with a combined capacity of up to 16 amps. This unit is engineered for safe, modular installation with bypass jumpers and diagnostic feedback through onboard LEDs.     Technical Specifications  Condition New/Never Used Surplus Brand Lutron Category Lighting Part Number HW-RPM-4U-120 Subcategory Lighting Controller System Compatibility HomeWorks, HomeWorks Interactive Voltage 120 VAC Frequency 50/60 Hz Total Load Capacity 16 A (1920 W max) Number of Circuits 4 Type Remote Power Module (Dimmer/Switch) Control Interface 4-pin control harness Operating Temperature 0°C to 40°C Installation Method     Panel-mounted in HW-PNL8, HWI-PNL-8/5 Cooling Load 70 BTU/hour Power Consumption 25 W Status Indication Diagnostic LED and address switch Finish Standard panel-mount module Certifications UL Listed, patented design Weight 3.00 lbs (approx. 1.36 kg)       Information About HW-RPM-4U-120 The HW-RPM-4U-120 is a 4-circuit remote power module manufactured by Lutron for use in HomeWorks systems. It installs directly into Lutron HW-PNL8, HWI-PNL-8, or HWI-PNL-5 enclosures and connects to the processor via a control harness. This unit delivers reliable switching/dimming functionality, supports circuit-level diagnostics, and includes bypass jumpers to facilitate safe installation. The module handles 120V loads up to 16A total and features per-channel override options for system verification. Key Features: 4 Independent Circuits: Controls four lighting loads individually for dimming or switching. 120V AC Operation: Designed for 120-volt residential and commercial lighting systems. High Load Capacity: Supports up to 16 amps total across all circuits (1920 watts). Bypass Jumpers: Includes five-position bypass jumpers to enable safe wiring and testing. Diagnostic LEDs: Built-in LEDs provide status feedback and communication verification. Addressing Flexibility: Adjustable address switch enables individual module configuration. Secure Control Integration: Connects to HomeWorks processor via dedicated 4-pin harness. The HW-RPM-4U-120 provides safe, scalable lighting control for premium automation systems.

Brand: Lutron · Category: PLCs & Industrial Controllers

Key features

• 4 Independent Circuits: Controls four lighting loads individually for dimming or switching.
• 120V AC Operation: Designed for 120-volt residential and commercial lighting systems.
• High Load Capacity: Supports up to 16 amps total across all circuits (1920 watts).
• Bypass Jumpers: Includes five-position bypass jumpers to enable safe wiring and testing.
• Diagnostic LEDs: Built-in LEDs provide status feedback and communication verification.
• Addressing Flexibility: Adjustable address switch enables individual module configuration.
• Secure Control Integration: Connects to HomeWorks processor via dedicated 4-pin harness.

Specifications
