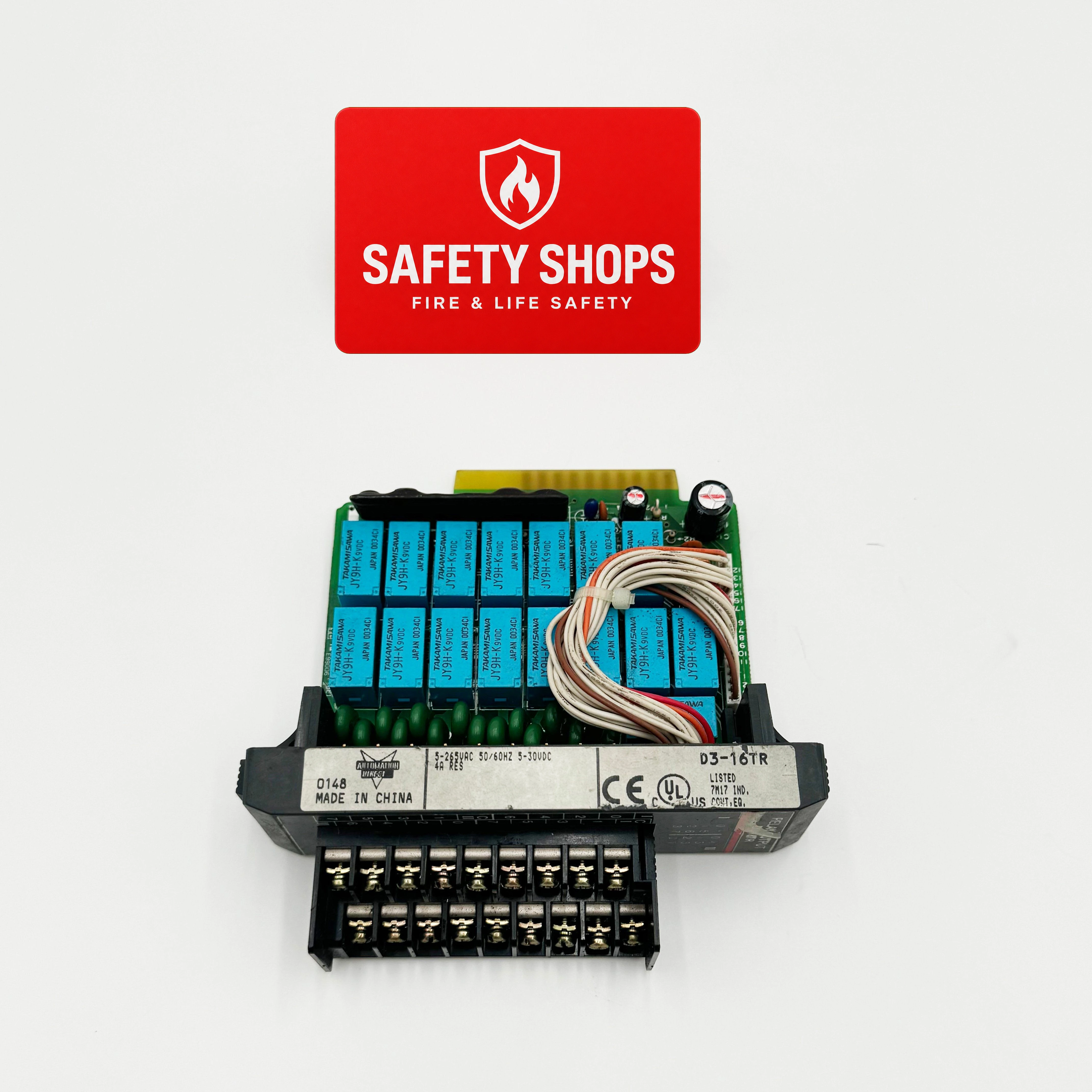

Automation Direct D3-16TR 16-Point Relay Output Module
Automation Direct · HMIs & Displays
Description The D3-16TR is a 16-point relay output module from Automation Direct, designed for use with the DL305 PLC system. It supports both 6-24 VDC and 6-240 VAC with 2A per point and features 2 isolated commons, each supporting up to 8 points. The module includes a removable terminal block for easy installation and is ideal for controlling external devices in industrial automation systems. Technical Specifications Condition New/Never Used Surplus Brand Automation Direct Category PLCs/Machine Control Part Number D3-16TR Subcategory VDC Logic I/O Module Series DL305 Output Type 16 Form A Relay Outputs (SPST-NO) Output Voltage 6–24 VDC / 6–240 VAC Current Rating 2 A per Output Isolation 2 Isolated Commons (8 Outputs per Common) Mounting Type DIN Rail Terminal Type Removable Terminal Block Application PLC Relay Output Expansion Dimensions 5.0 × 2.0 × 5.0 in (12.7 × 5.1 × 12.7 cm) Weight 0.2 kg Information About D3-16TR The D3-16TR is a relay output module from Automation Direct, designed to provide 16 relay outputs for use with compatible PLC systems. This module is ideal for industrial applications where control of external devices like motors, alarms, and other machinery is needed, offering reliable switching capabilities for a wide range of automation tasks. Key Features: 16 Relay Outputs: Provides sixteen Form A (SPST-NO) relay outputs for discrete control applications. AC and DC Switching: Supports switching loads from 6–24 VDC and 6–240 VAC. 2 A Output Rating: Each relay output is rated for up to 2 A of switching current. Two Isolated Commons: Divides outputs into two isolated groups with eight points each. DL305 Compatibility: Designed specifically for Automation Direct DL305 PLC systems. DIN Rail Mounting: Enables quick installation in industrial control cabinets. Removable Terminal Block: Simplifies wiring, maintenance, and module replacement. Industrial Control Applications: Suitable for controlling motors, alarms, contactors, and other field devices. The D3-16TR delivers the reliability and precision required for industrial relay control, PLC output expansion, and machine automation applications.
Brand: Automation Direct · Category: HMIs & Displays
Key features
- 16 Relay Outputs: Provides sixteen Form A (SPST-NO) relay outputs for discrete control applications.
- AC and DC Switching: Supports switching loads from 6–24 VDC and 6–240 VAC.
- 2 A Output Rating: Each relay output is rated for up to 2 A of switching current.
- Two Isolated Commons: Divides outputs into two isolated groups with eight points each.
- DL305 Compatibility: Designed specifically for Automation Direct DL305 PLC systems.
- DIN Rail Mounting: Enables quick installation in industrial control cabinets.
- Removable Terminal Block: Simplifies wiring, maintenance, and module replacement.
- Industrial Control Applications: Suitable for controlling motors, alarms, contactors, and other field devices.
Specifications
| Manufacturer part number | D3-16TR |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLCs/Machine Control |
| Part Number | D3-16TR |
| Subcategory | VDC Logic I/O Module |
| Series | DL305 |
| Output Type | 16 Form A Relay Outputs (SPST-NO) |
| Output Voltage | 6–24 VDC / 6–240 VAC |
| Current Rating | 2 A per Output |
| Isolation | 2 Isolated Commons (8 Outputs per Common) |
| Mounting Type | DIN Rail |
| Terminal Type | Removable Terminal Block |
| Application | PLC Relay Output Expansion |
| Dimensions | 5.0 × 2.0 × 5.0 in (12.7 × 5.1 × 12.7 cm) |
| Weight | 0.2 kg |
| Product type | Relay Output Module |
