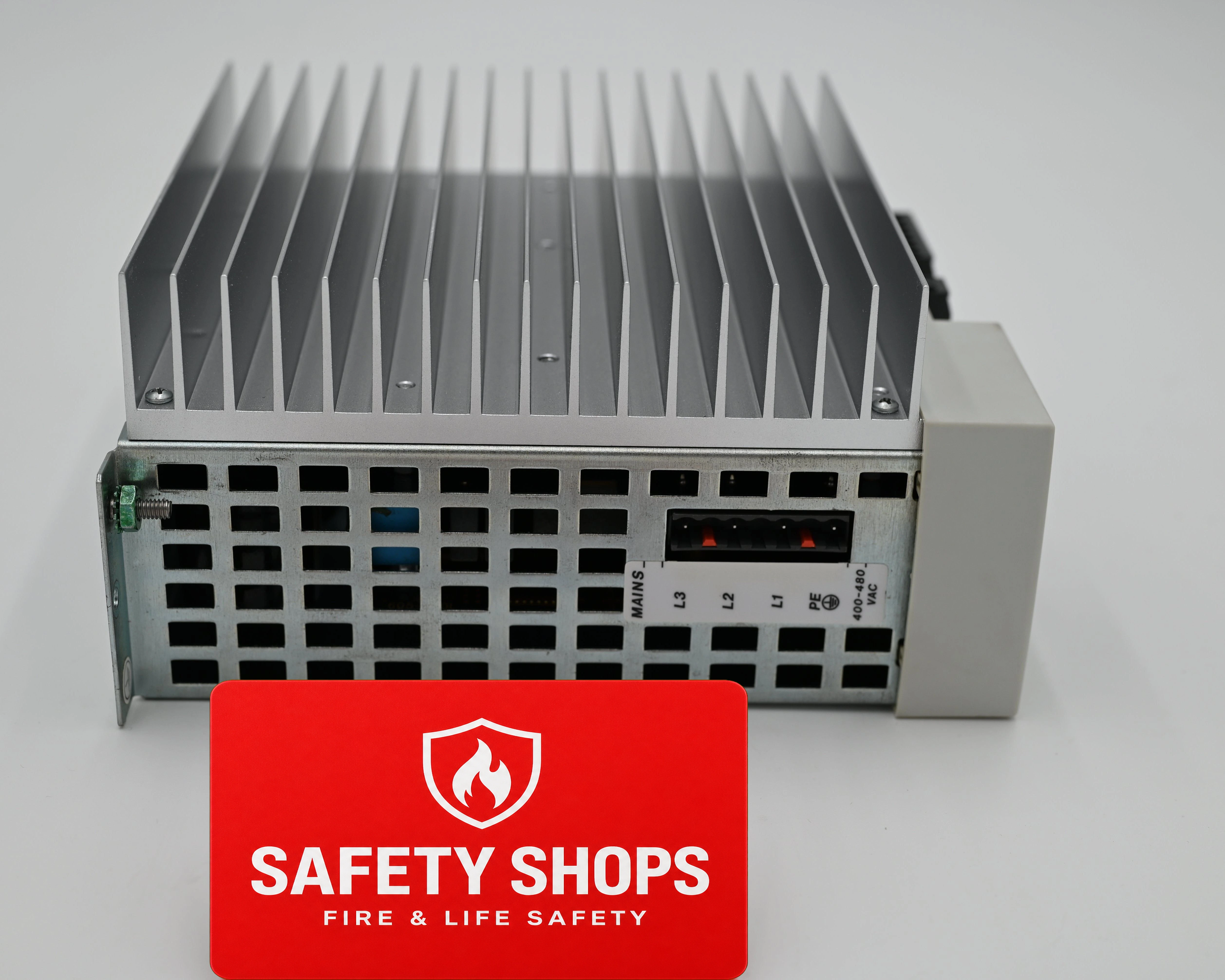

2097-V34PR5-LM | Allen-Bradley Kinetix 350 EtherNet/IP Single-Axis Servo Drive with 2.0 kW Output and Safe Torque-Off
Allen-Bradley · Drives & Motor Control
Description The Allen-Bradley 2097-V34PR5-LM is a Kinetix 350 Ethernet/IP single-axis servo drive engineered for reliable and precise motion control. Designed for integration with CompactLogix controllers, this drive supports Integrated Motion over EtherNet/IP and provides a continuous output power of 2.0 kW with a robust Safe Torque-Off (STO) safety function. With a compact footprint and flexible configuration options, it is ideal for a wide range of industrial automation and servo applications. Technical Specifications Condition New / Never Used Surplus Brand Allen-Bradley Series Kinetix 350 Part Number 2097-V34PR5-LM Product Type Single-Axis Servo Drive Input Voltage 320…528V AC, 3-phase (480V nominal) Input Frequency 48…62 Hz Continuous Output Power 2.0 kW Continuous Output Current (rms) 4.0 A Continuous Output Current (0-pk) 5.7 A Peak Output Current (rms) 12.0 A Peak Output Current (0-pk) 17.0 A Main AC Input Current (rms) 5.5 A Main AC Input Current (0-pk) 4.5 A Control Power Backup Voltage 20–26V DC Control Power Backup Current (nom) 500 mA Control Power Inrush 30 A Short-Circuit Rating 100,000 A (rms) symmetrical Safe Torque-Off Yes Integrated EMC Filter No Dimensions 9.37 x 7.29 x 4.10 in (238 x 186.1 x 104.1 mm) Operating Temperature 0–50 °C Certifications cULus, CE, C-Tick, KC Application Category Kinetix 350 EtherNet/IP Single-Axis Drives Information About 2097-V34PR5-LM The 2097-V34PR5-LLM is part of the Allen-Bradley Kinetix 350 drive family, offering an economical yet powerful option for single-axis motion control. It operates from a 320…528V AC, three-phase supply (480V nominal) and delivers a continuous output current of 4.0 A RMS, with peak currents up to 17.0 A (0-pk). This provides reliable performance for motors up to 2.0 kW. The drive integrates seamlessly with CompactLogix 5370 controllers, enabling full motion profiling, position control, velocity regulation, and torque management through EtherNet/IP. The embedded Safe Torque-Off (STO) capability enhances machine safety by disabling drive output without removing power from the system. Commissioning is greatly simplified, especially when used with Allen-Bradley MP-Series or TL-Series servo motors, which the drive automatically detects via electronic nameplate technology. Support for regenerative applications is available through optional external shunt resistors. Status LEDs offer instant diagnostic feedback for network, axis, and drive status, while the compact housing saves panel space and reduces installation costs. The drive is designed to operate in typical industrial environments, supporting temperatures from 0 to 50 °C and meeting global certifications including CE, cULus, C-Tick, and KC. Key Features Single-axis EtherNet/IP servo drive for seamless motion integration 2.0 kW continuous output power for mid-range servo applications Safe Torque-Off (STO) for enhanced functional safety Wide AC input range: 320–528V AC, 3-phase (480V nominal) Continuous output current: 4.0 A RMS (5.7 A 0-pk) Peak output current: 12.0 A RMS (17.0 A 0-pk) Easy commissioning with automatic motor identification Compact panel-saving design Regeneration capable via external shunt connection Designed for Integrated Motion on EtherNet/IP with CompactLogix
Brand: Allen-Bradley · Category: Drives & Motor Control
Key features
- Single-axis EtherNet/IP servo drive for seamless motion integration
- 2.0 kW continuous output power for mid-range servo applications
- Safe Torque-Off (STO) for enhanced functional safety
- Wide AC input range: 320–528V AC, 3-phase (480V nominal)
- Continuous output current: 4.0 A RMS (5.7 A 0-pk)
- Peak output current: 12.0 A RMS (17.0 A 0-pk)
- Easy commissioning with automatic motor identification
- Compact panel-saving design
- Regeneration capable via external shunt connection
- Designed for Integrated Motion on EtherNet/IP with CompactLogix
Specifications
| Manufacturer part number | 2097-V34PR5-LM |
|---|---|
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Series | Kinetix 350 |
| Part Number | 2097-V34PR5-LM |
| Product Type | Single-Axis Servo Drive |
| Input Voltage | 320…528V AC, 3-phase (480V nominal) |
| Input Frequency | 48…62 Hz |
| Continuous Output Power | 2.0 kW |
| Continuous Output Current (rms) | 4.0 A |
| Continuous Output Current (0-pk) | 5.7 A |
| Peak Output Current (rms) | 12.0 A |
| Peak Output Current (0-pk) | 17.0 A |
| Main AC Input Current (rms) | 5.5 A |
| Main AC Input Current (0-pk) | 4.5 A |
| Control Power Backup Voltage | 20–26V DC |
| Control Power Backup Current (nom) | 500 mA |
| Control Power Inrush | 30 A |
| Short-Circuit Rating | 100,000 A (rms) symmetrical |
| Safe Torque-Off | Yes |
| Integrated EMC Filter | No |
| Dimensions | 9.37 x 7.29 x 4.10 in (238 x 186.1 x 104.1 mm) |
| Operating Temperature | 0–50 °C |
| Certifications | cULus, CE, C-Tick, KC |
| Application Category | Kinetix 350 EtherNet/IP Single-Axis Drives |
| Product type | Kinetix 350 Ethernet/IP AC Servo Drive, 480V, 2kW |
Contact Safety Shops for pricing, delivery and project support in the UAE.
