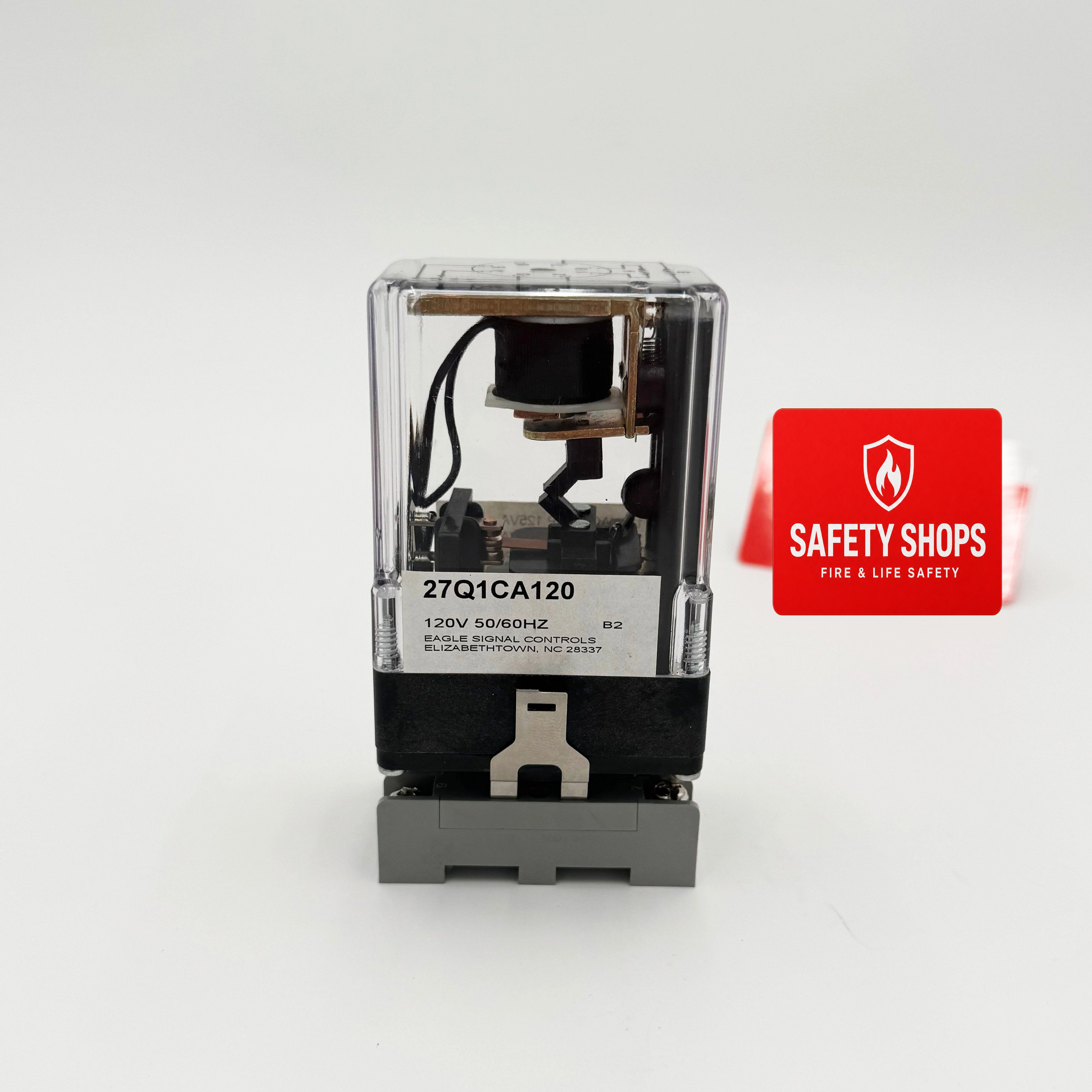

27Q1CA120 | Eagle Signal Relay Mechanical Latch

Eagle Signal · HMIs & Displays

Description  The Eagle Signal 27Q1CA120 is a mechanical latch relay designed for dependable holding and switching of electrical circuits using a single-pole contact configuration. It operates at 120 VAC and features a 50/60 Hz coil for compatibility with standard AC power systems.     Technical Specifications  Condition New/Never Used Surplus Brand Eagle Signal Category Panel Accessories Part Number 27Q1CA120 Subcatecory Relay/Socket Contact Configuration 1 Pole (SPST or similar) Coil Voltage 120 VAC Frequency 50/60 Hz Horsepower Rating 1/6 HP Latching Mechanism Mechanical Application Control Circuits, Low-Power Motors Weight 0.24 lb       Information About 27Q1CA120 The 27Q1CA120 is a one-pole mechanical latch relay that maintains its last state without continuous coil power, improving energy efficiency and reducing coil wear. Designed to handle loads up to 1/6 HP, it is suitable for low-power motor and signal applications. The unit operates on a standard 120V AC input at both 50 and 60 Hz, providing versatility across global installations. Its mechanical latching design ensures reliable retention during power interruptions or system fluctuations. Key Features: Mechanical Latch Design: retains position without continuous coil power, conserving energy and reducing wear. Single-Pole Configuration: supports basic circuit switching with one pole relay contact. 120 VAC Operation: compatible with standard control voltage environments at 50/60 Hz. 1/6 HP Rating: capable of switching fractional horsepower loads for light-duty motor applications. Stable Switching: mechanical hold ensures secure relay status even during power loss or transient events. The 27Q1CA120 offers dependable latching performance with single-pole switching and low-power load support for control and signaling systems.

Brand: Eagle Signal · Category: HMIs & Displays

Key features

• Mechanical Latch Design: retains position without continuous coil power, conserving energy and reducing wear.
• Single-Pole Configuration: supports basic circuit switching with one pole relay contact.
• 120 VAC Operation: compatible with standard control voltage environments at 50/60 Hz.
• 1/6 HP Rating: capable of switching fractional horsepower loads for light-duty motor applications.
• Stable Switching: mechanical hold ensures secure relay status even during power loss or transient events.

Specifications
