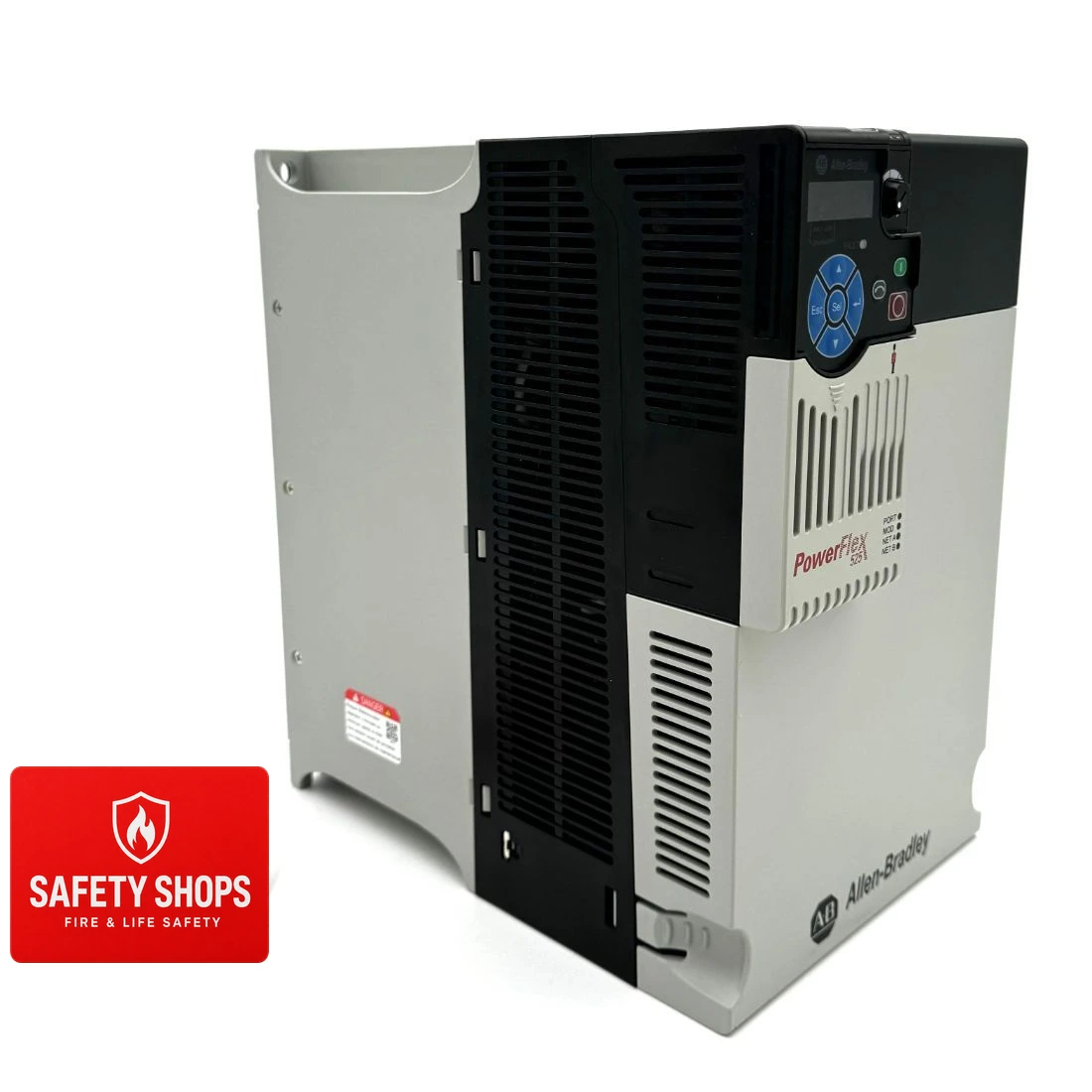

25B-D043N114 | Allen-Bradley PowerFlex 525 43A AC Drive, 22 kW Normal Duty, Frame E
Allen-Bradley · HMIs & Displays
Description The Allen-Bradley 25B-D043N114 is an adjustable frequency drive built for reliable motor speed and torque control in industrial automation systems. Designed for the PowerFlex 525 series, it supports both normal-duty and heavy-duty motor applications with stable performance across a wide operating range. This drive is suited for installations requiring precise AC motor regulation, integrated safety functions, and flexible communication options. Technical Specifications Condition New/Never Used Surplus Brand Allen-Bradley Category Drives Part Number 25B-D043N114 Subcategory Motor Drives Series PowerFlex 525 Manufacturer Rockwell Automation Input Voltage 380–480 VAC (3-Phase) Output Current 43 A Output Power (Normal Duty) 22 kW (30 HP) Output Power (Heavy Duty) 18.5 kW (25 HP) Output Voltage 0–460 VAC Input Frequency Range 47–63 Hz Control Methods V/Hz, Sensorless Vector, Permanent Magnet Control Communication Ports Ethernet/IP, RS-485 Optional Protocols DeviceNet, Profibus, Additional Ethernet options Integrated Safety Safe Torque Off (STO) I/O Configuration 7 digital inputs, 2 relay outputs, 2 opto outputs, 2 analog inputs, 1 analog output Enclosure Rating IP20 / Open Type Frame Size Frame E Installation Type Panel mount / Zero stacking capable EMC Filter Integrated Frequency Range (Output) 0–500 Hz programmable Weight 13.61 kg Information About 25B-D043N114 The 25B-D043N114 is part of the Allen-Bradley PowerFlex 525 series and is engineered as a modular, compact AC drive for three-phase motor applications. It features a robust Frame E design, broad voltage tolerance, and compatibility with panel-mounted installations including zero-stacking configurations. The drive supports multiple control technologies—such as V/Hz, sensorless vector, and permanent magnet motor control—allowing it to adapt to a wide range of automation environments. Its integrated safety, built-in Ethernet and RS-485 communication, and flexible I/O architecture enhance system connectivity and simplify integration into new or existing machinery. Key Features: High-Output Capability: Provides 43 A output current with 22 kW (30 HP) normal-duty rating and 18.5 kW (25 HP) heavy-duty rating. Multiple Control Modes: Supports Volts/Hertz, Sensorless Vector Control, and permanent magnet motor control. Integrated Safety Function: Includes Safe Torque Off (STO) capability without requiring additional external modules. Expanded Communication Options: Offers built-in Ethernet/IP and RS-485 plus optional DeviceNet and Profibus modules. Flexible I/O Configuration: Includes seven digital inputs, relay outputs, opto outputs, and analog input/output channels. Compact Installation: Designed for zero-stacking to optimize panel space while maintaining proper thermal performance. Removable MOV Protection: Allows operation in grounded or ungrounded distribution systems. Detachable Modules: Control and power modules can be removed independently for simplified maintenance and replacement. The 25B-D043N114 delivers the reliability and precision required for modern AC motor control in demanding industrial environments.
Brand: Allen-Bradley · Category: HMIs & Displays
Key features
- High-Output Capability: Provides 43 A output current with 22 kW (30 HP) normal-duty rating and 18.5 kW (25 HP) heavy-duty rating.
- Multiple Control Modes: Supports Volts/Hertz, Sensorless Vector Control, and permanent magnet motor control.
- Integrated Safety Function: Includes Safe Torque Off (STO) capability without requiring additional external modules.
- Expanded Communication Options: Offers built-in Ethernet/IP and RS-485 plus optional DeviceNet and Profibus modules.
- Flexible I/O Configuration: Includes seven digital inputs, relay outputs, opto outputs, and analog input/output channels.
- Compact Installation: Designed for zero-stacking to optimize panel space while maintaining proper thermal performance.
- Removable MOV Protection: Allows operation in grounded or ungrounded distribution systems.
- Detachable Modules: Control and power modules can be removed independently for simplified maintenance and replacement.
Specifications
| Manufacturer part number | 25B-D043N114 |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Drives |
| Part Number | 25B-D043N114 |
| Subcategory | Motor Drives |
| Series | PowerFlex 525 |
| Manufacturer | Rockwell Automation |
| Input Voltage | 380–480 VAC (3-Phase) |
| Output Current | 43 A |
| Output Power (Normal Duty) | 22 kW (30 HP) |
| Output Power (Heavy Duty) | 18.5 kW (25 HP) |
| Output Voltage | 0–460 VAC |
| Input Frequency Range | 47–63 Hz |
| Control Methods | V/Hz, Sensorless Vector, Permanent Magnet Control |
| Communication Ports | Ethernet/IP, RS-485 |
| Optional Protocols | DeviceNet, Profibus, Additional Ethernet options |
| Integrated Safety | Safe Torque Off (STO) |
| I/O Configuration | 7 digital inputs, 2 relay outputs, 2 opto outputs, 2 analog inputs, 1 analog output |
| Enclosure Rating | IP20 / Open Type |
| Frame Size | Frame E |
| Installation Type | Panel mount / Zero stacking capable |
| EMC Filter | Integrated |
| Frequency Range (Output) | 0–500 Hz programmable |
| Weight | 13.61 kg |
| Product type | PowerFlex 525 AC Drive 480V/43A/30HP |
