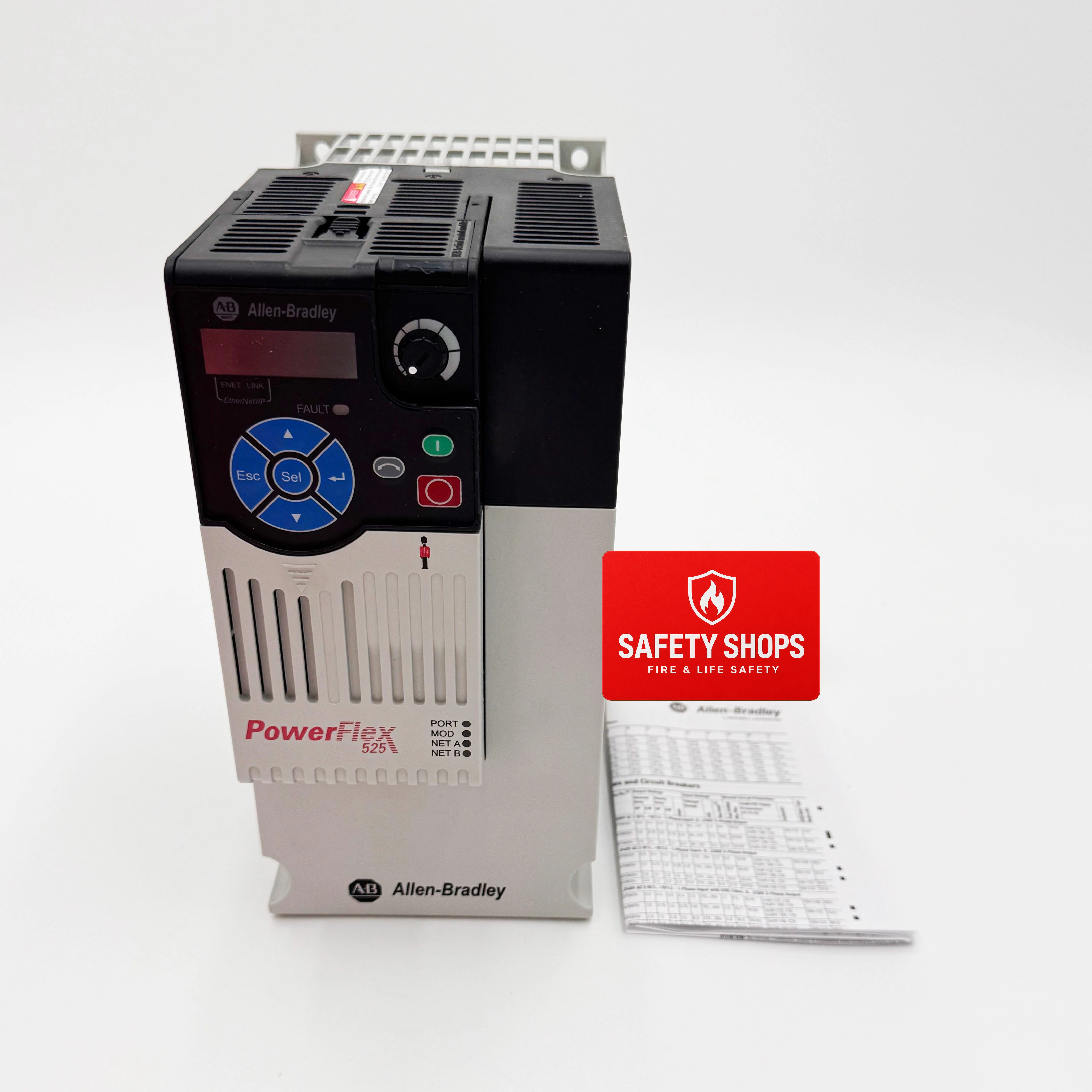

25B-D013N104 | Allen-Bradley PowerFlex 525 AC Drive 480V/13A/7.5HP
Allen-Bradley · HMIs & Displays
Description The Allen-Bradley 25B-D013N104 is a PowerFlex 525 variable frequency drive (VFD) designed for reliable AC motor speed and torque control. It operates on a 323–528 V AC, 3-phase supply and provides a 7.5 kW (5.5 HP) motor output with 13 A continuous current. Featuring Safe Torque-Off and multiple motor control modes, this compact drive is widely used in machine automation and process control applications. Technical Specifications Condition New/Never Used Surplus Brand Allen-Bradley Category AC Drives Part Number 25B-D013N104 Sub-Brand PowerFlex® 525 Type Variable Frequency Drive (VFD) Power Rating 5.5 kW (7.5 HP) Voltage Class 480 V AC, 3-phase Output Current 13 A Frequency Range 50/60 Hz Control Modes V/Hz, Sensorless Vector, Closed-Loop Vector, Permanent Magnet Safety Rating STO SIL2, Category 3 Enclosure IP20 / NEMA Type Open Mounting Panel mount Connection Type Fixed terminal block Outputs 1 analog, 2 digital Power Factor 0.98 Frame Size Frame C Supported Networks EtherNet/IP, DeviceNet (via adapter), Modbus, PROFIBUS Temperature Rating Standard industrial rating (per series specs) Certifications CE, UL, cUL, KC, Marine, GOST, C-TICK Application Pumps, conveyors, HVAC, material handling, general-purpose motor control Special Features Brake IGBT, embedded Ethernet, safety STO function Information About 25B-D013N104 The 25B-D013N104 is part of the Allen-Bradley PowerFlex 520 series, built for flexibility, safety, and seamless integration into Logix platforms. It supports V/Hz, sensorless vector, closed-loop velocity vector, and permanent magnet motor control methods, enabling efficient operation across a variety of load conditions. The drive delivers a 0–500 Hz output frequency, a power factor of 0.98, and a continuous current rating of 13 A. It is equipped with an integrated keypad and LED indicators for local monitoring and programming, as well as USB, RS-485, and EtherNet/IP connectivity for system integration. The modular design includes a removable control core and power module, simplifying installation and maintenance. Safety is enhanced with SIL2, Cat. 3 certified Safe Torque-Off (STO), which removes motor torque without shutting down drive power. The unit includes 512 MB of memory, programmable stop modes (ramp, coast, DC brake, ramp-to-stop), and four independent acceleration/deceleration times configurable from 0–600 s. Designed for panel mounting in IP20 open-type enclosures, the 25B-D013N104 offers Zero Stacking™ mounting with only a 50 mm airflow gap, supporting high-density cabinet layouts. Key Features: Input Power: 323–528 V AC, 3-phase, 50/60 Hz. Output Power: 7.5 kW (5.5 HP) motor rating, 13 A continuous current. Frequency Range: 0–500 Hz programmable. Motor Control: V/Hz, sensorless vector, closed-loop vector, permanent magnet motor control. Safety: Integrated Safe Torque-Off (STO), certified SIL2, Cat. 3. I/O Capability: 7 digital inputs, 1 N.O. and 1 N.C. relay output, 2 digital outputs, 2 analog inputs, 1 analog output. Design: Modular with removable control core and power module, Zero Stacking™ mounting. Programming: Integrated keypad with LED display, USB and EtherNet/IP connectivity. Performance: Power factor 0.98, programmable stop modes, 4 accel/decel times. Enclosure: IP20, UL NEMA open type, frame size C. The 25B-D013N104 delivers versatile motor control, safety, and compact design, making it a dependable solution for demanding industrial automation applications.
Brand: Allen-Bradley · Category: HMIs & Displays
Key features
- Input Power: 323–528 V AC, 3-phase, 50/60 Hz.
- Output Power: 7.5 kW (5.5 HP) motor rating, 13 A continuous current.
- Frequency Range: 0–500 Hz programmable.
- Motor Control: V/Hz, sensorless vector, closed-loop vector, permanent magnet motor control.
- Safety: Integrated Safe Torque-Off (STO), certified SIL2, Cat. 3.
- I/O Capability: 7 digital inputs, 1 N.O. and 1 N.C. relay output, 2 digital outputs, 2 analog inputs, 1 analog output.
- Design: Modular with removable control core and power module, Zero Stacking™ mounting.
- Programming: Integrated keypad with LED display, USB and EtherNet/IP connectivity.
- Performance: Power factor 0.98, programmable stop modes, 4 accel/decel times.
- Enclosure: IP20, UL NEMA open type, frame size C.
Specifications
| Manufacturer part number | 25B-D013N104 |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | AC Drives |
| Part Number | 25B-D013N104 |
| Sub-Brand | PowerFlex® 525 |
| Type | Variable Frequency Drive (VFD) |
| Power Rating | 5.5 kW (7.5 HP) |
| Voltage Class | 480 V AC, 3-phase |
| Output Current | 13 A |
| Frequency Range | 50/60 Hz |
| Control Modes | V/Hz, Sensorless Vector, Closed-Loop Vector, Permanent Magnet |
| Safety Rating | STO SIL2, Category 3 |
| Enclosure | IP20 / NEMA Type Open |
| Mounting | Panel mount |
| Connection Type | Fixed terminal block |
| Outputs | 1 analog, 2 digital |
| Power Factor | 0.98 |
| Frame Size | Frame C |
| Supported Networks | EtherNet/IP, DeviceNet (via adapter), Modbus, PROFIBUS |
| Temperature Rating | Standard industrial rating (per series specs) |
| Certifications | CE, UL, cUL, KC, Marine, GOST, C-TICK |
| Application | Pumps, conveyors, HVAC, material handling, general-purpose motor control |
| Special Features | Brake IGBT, embedded Ethernet, safety STO function |
| Product type | Drive |
Contact Safety Shops for pricing, delivery and project support in the UAE.
