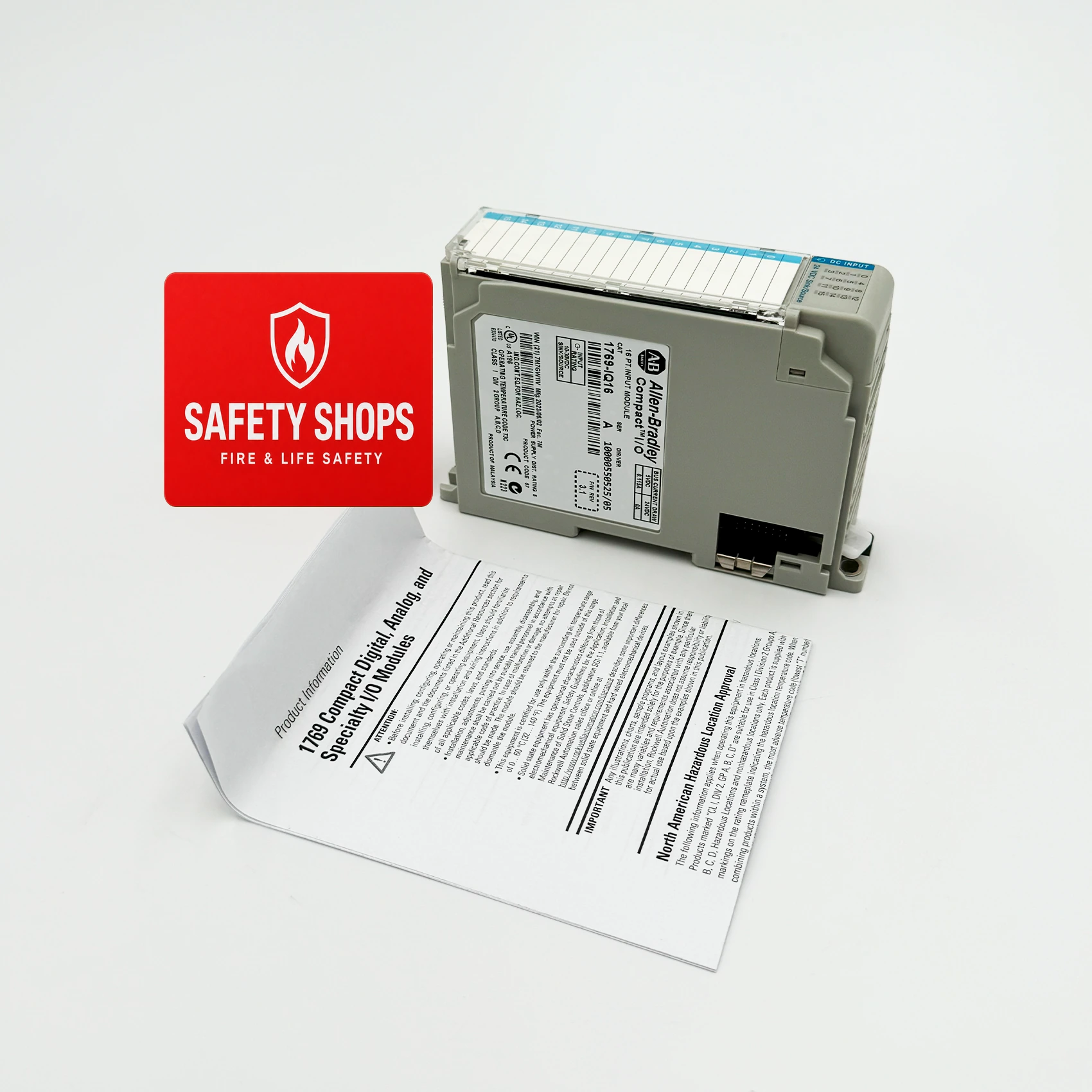

1769-IQ16 | Allen-Bradley CompactLogix Sink/Source Input Module 16 Point 24 VDC

Allen-Bradley · HMIs & Displays

Description  The Allen-Bradley 1769-IQ16 is a Compact I/O digital input module with sixteen 24 VDC sink/source channels. It is designed for use with CompactLogix controllers or the MicroLogix 1500, enabling reliable interfacing with ON/OFF field devices.     Technical Specifications  Condition New / Never Used Surplus Brand Allen-Bradley Manufacturer Rockwell Automation Part Number 1769-IQ16 Product Family Compact I/O Product Type Discrete Input Module Product Line CompactLogix Module Type DC Input Module No. of Inputs 16 Input Type Digital Input No. of Groups 2 groups (8 inputs each) Power Supply Distance rating 8 Communication Cable 16 Point Compatible Controllers MicroLogix 1500; CompactLogix Voltage Category 24V DC sink/source Shipping Dimensions 8 x 8 x 5 in. Series A and B Operating Voltage range 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) Off-state Voltage 5V DC Distance Rating 8 Modules On-state Voltage 10V DC Working Voltage Rating 30 Volts AC/ 30 Volts DC Input delay, On 8 ms Wire Type Copper-90 degrees Celsius Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 Replacement Terminal Block 1769-RTBN18 Wire Size (Solid) 22-14 AWG       Information About 1769-IQ16 The 1769-IQ16 belongs to the Allen-Bradley Compact I/O family and provides 16 digital inputs divided into two groups of eight channels each. It operates within 10–30 VDC at 30 °C or 10–26.4 VDC at 60 °C, with an input ON threshold of 10 VDC and OFF threshold of 5 VDC. The module has an 8 ms input delay, 3 kΩ nominal input impedance, and supports a maximum surge current of 250 mA. It consumes 115 mA at 5.1 VDC from the backplane and dissipates up to 3.55 W (12.11 BTU/hr). Designed with IEC Class 2 reinforced insulation, it withstands 75 VDC isolation and testing up to 1697 VDC for one second. The 1769-IQ16 supports an 8-module power supply distance rating and is compatible with 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4 power supplies. Compact in size at 118 × 35 × 87 mm and weighing 270 g, it installs via DIN rail or panel mounting and uses copper conductors rated 90 °C with 22–14 AWG wire size. This module is suited for interfacing with switches, sensors, relays, and contactor auxiliary contacts in automation systems. Key Features: Input Channels: Sixteen 24 VDC sink/source inputs divided into two groups of eight channels. Voltage Range: Operates from 10–30 VDC at 30 °C or 10–26.4 VDC at 60 °C. Input Thresholds: ON-state at 10 VDC/2 mA, OFF-state at 5 VDC/1.5 mA. Input Delay: 8 ms ON/OFF delay ensures stable signal processing. Surge/Impedance: Supports up to 250 mA surge current with 3 kΩ nominal input impedance. Insulation: IEC Class 2 reinforced insulation with 75 VDC working voltage and 1697 VDC test voltage. Backplane Power: Draws 115 mA at 5.1 VDC, dissipating 3.55 W heat. Mechanical Design: Compact size (118 × 35 × 87 mm), weight 270 g, with DIN rail or panel mounting options. Supply Distance Rating: 8 modules, compatible with 1769-PA2, PB2, PA4, and PB4 power supplies. Application Use: Interfaces with relays, switches, sensors, thermal overload contacts, and other 24 VDC ON/OFF devices. The 1769-IQ16 delivers the reliability and precision required for digital signal interfacing in CompactLogix and MicroLogix automation systems.

Brand: Allen-Bradley · Category: HMIs & Displays

Key features

• Input Channels: Sixteen 24 VDC sink/source inputs divided into two groups of eight channels.
• Voltage Range: Operates from 10–30 VDC at 30 °C or 10–26.4 VDC at 60 °C.
• Input Thresholds: ON-state at 10 VDC/2 mA, OFF-state at 5 VDC/1.5 mA.
• Input Delay: 8 ms ON/OFF delay ensures stable signal processing.
• Surge/Impedance: Supports up to 250 mA surge current with 3 kΩ nominal input impedance.
• Insulation: IEC Class 2 reinforced insulation with 75 VDC working voltage and 1697 VDC test voltage.
• Backplane Power: Draws 115 mA at 5.1 VDC, dissipating 3.55 W heat.
• Mechanical Design: Compact size (118 × 35 × 87 mm), weight 270 g, with DIN rail or panel mounting options.
• Supply Distance Rating: 8 modules, compatible with 1769-PA2, PB2, PA4, and PB4 power supplies.
• Application Use: Interfaces with relays, switches, sensors, thermal overload contacts, and other 24 VDC ON/OFF devices.

Specifications
