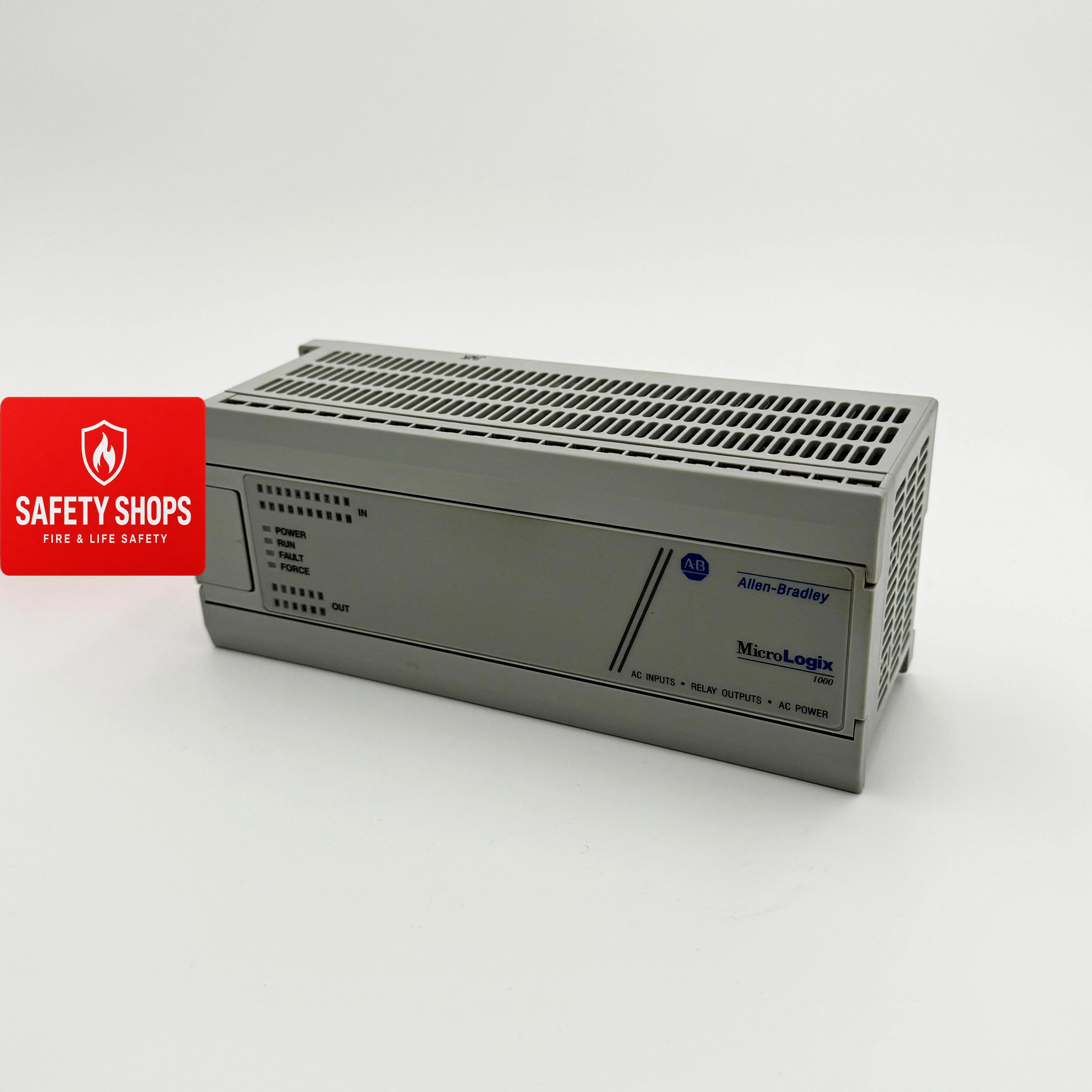

1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays
Allen-Bradley · PLCs & Industrial Controllers
Description The Allen-Bradley 1761-L32AWA is a MicroLogix 1000 programmable logic controller (PLC) with 32 I/O points. It includes 20 discrete 120V AC inputs and 12 relay outputs, supported by 1K EEPROM memory and an integrated RS-232 communication port. Technical Specifications Condition New/Never Used Surplus Brand Allen-Bradley Category Programmable Logic Controllers Part Number 1761-L32AWA Subcategory MicroLogix 1000 Series Type 32-Point PLC Controller Total I/O 32 points Digital Inputs 20 × 120 VAC inputs Digital Outputs 12 relay/contact outputs Analog Inputs None Analog Outputs None Isolation Voltage 1500 VAC (I/O to logic) Memory Type EEPROM (non-volatile) Memory Size 1K words (≈737 instruction words + 437 data words) Communication Port RS-232-C Network Support DH-485 (via external 1761-NET-AIC module) Output Type Relay (contact) Input Voltage 120 VAC Expansion Modules Not supported (MicroLogix 1000 does not expand) Programming Software RSLogix 500 / MicroLogix programming environment Mounting Panel or DIN-rail Enclosure Open-style Application Basic machine control, panel automation, standalone PLC applications Special Features Non-volatile EEPROM storage, relay outputs, built-in RS-232 communication Information About 1761-L32AWA The 1761-L32AWA is part of the Allen-Bradley Bulletin 1761 MicroLogix 1000 series, designed for compact and cost-effective automation control. It offers 1K words of user memory (approximately 737 instruction words and 437 data words) stored in non-volatile EEPROM, ensuring data retention without a backup battery. With 20 AC digital inputs and 12 relay outputs, it supports both 24–125V DC and 0–240V AC output voltage ranges. Communication is handled via an integrated RS-232 port using the DF1 protocol, with optional connectivity through DeviceNet Interface (DNI) modules for expanded networking. The unit measures 7.87 x 2.87 x 3.15 inches, supports both horizontal and vertical mounting, and requires clearance for airflow. Despite being discontinued, the 1761-L32AWA remains widely used in legacy automation systems. Key Features: I/O Capacity: 32 I/O points with 20 AC digital inputs and 12 relay outputs. Memory: 1K EEPROM memory (737 instruction words, 437 data words) for program storage. Input and Output Ratings: Inputs rated for 120V AC; outputs rated for 24–125V DC or 0–240V AC. Communication: Integrated RS-232 port with DF1 protocol, expandable with DeviceNet Interface for networking. Power Supply: Operates at 120/240V AC with 19 VA (120V) or 25 VA (240V) consumption. Safety Features: Includes a master control relay; suitable for Class 1, Division 2 hazardous locations with enclosure. Mechanical Design: Compact dimensions (7.87 x 2.87 x 3.15 in.), supporting horizontal or vertical mounting with airflow clearance. Environmental: Operating temperature range of 0–40 °C, shock tested to 9 g peak acceleration for 11 ms on three axes. The 1761-L32AWA delivers dependable performance and basic automation functionality, making it a durable choice for legacy MicroLogix-based systems.
Brand: Allen-Bradley · Category: PLCs & Industrial Controllers
Key features
- I/O Capacity: 32 I/O points with 20 AC digital inputs and 12 relay outputs.
- Memory: 1K EEPROM memory (737 instruction words, 437 data words) for program storage.
- Input and Output Ratings: Inputs rated for 120V AC; outputs rated for 24–125V DC or 0–240V AC.
- Communication: Integrated RS-232 port with DF1 protocol, expandable with DeviceNet Interface for networking.
- Power Supply: Operates at 120/240V AC with 19 VA (120V) or 25 VA (240V) consumption.
- Safety Features: Includes a master control relay; suitable for Class 1, Division 2 hazardous locations with enclosure.
- Mechanical Design: Compact dimensions (7.87 x 2.87 x 3.15 in.), supporting horizontal or vertical mounting with airflow clearance.
- Environmental: Operating temperature range of 0–40 °C, shock tested to 9 g peak acceleration for 11 ms on three axes.
Specifications
| Manufacturer part number | 1761-L32AWA |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Programmable Logic Controllers |
| Part Number | 1761-L32AWA |
| Subcategory | MicroLogix 1000 Series |
| Type | 32-Point PLC Controller |
| Total I/O | 32 points |
| Digital Inputs | 20 × 120 VAC inputs |
| Digital Outputs | 12 relay/contact outputs |
| Analog Inputs | None |
| Analog Outputs | None |
| Isolation Voltage | 1500 VAC (I/O to logic) |
| Memory Type | EEPROM (non-volatile) |
| Memory Size | 1K words (≈737 instruction words + 437 data words) |
| Communication Port | RS-232-C |
| Network Support | DH-485 (via external 1761-NET-AIC module) |
| Output Type | Relay (contact) |
| Input Voltage | 120 VAC |
| Expansion Modules | Not supported (MicroLogix 1000 does not expand) |
| Programming Software | RSLogix 500 / MicroLogix programming environment |
| Mounting | Panel or DIN-rail |
| Enclosure | Open-style |
| Application | Basic machine control, panel automation, standalone PLC applications |
| Special Features | Non-volatile EEPROM storage, relay outputs, built-in RS-232 communication |
| Product type | PLC Module/Rack |
