1746-OB16 | Allen-Bradley SLC 500 16-Point 24VDC Sourcing Output Module

Allen-Bradley · HMIs & Displays

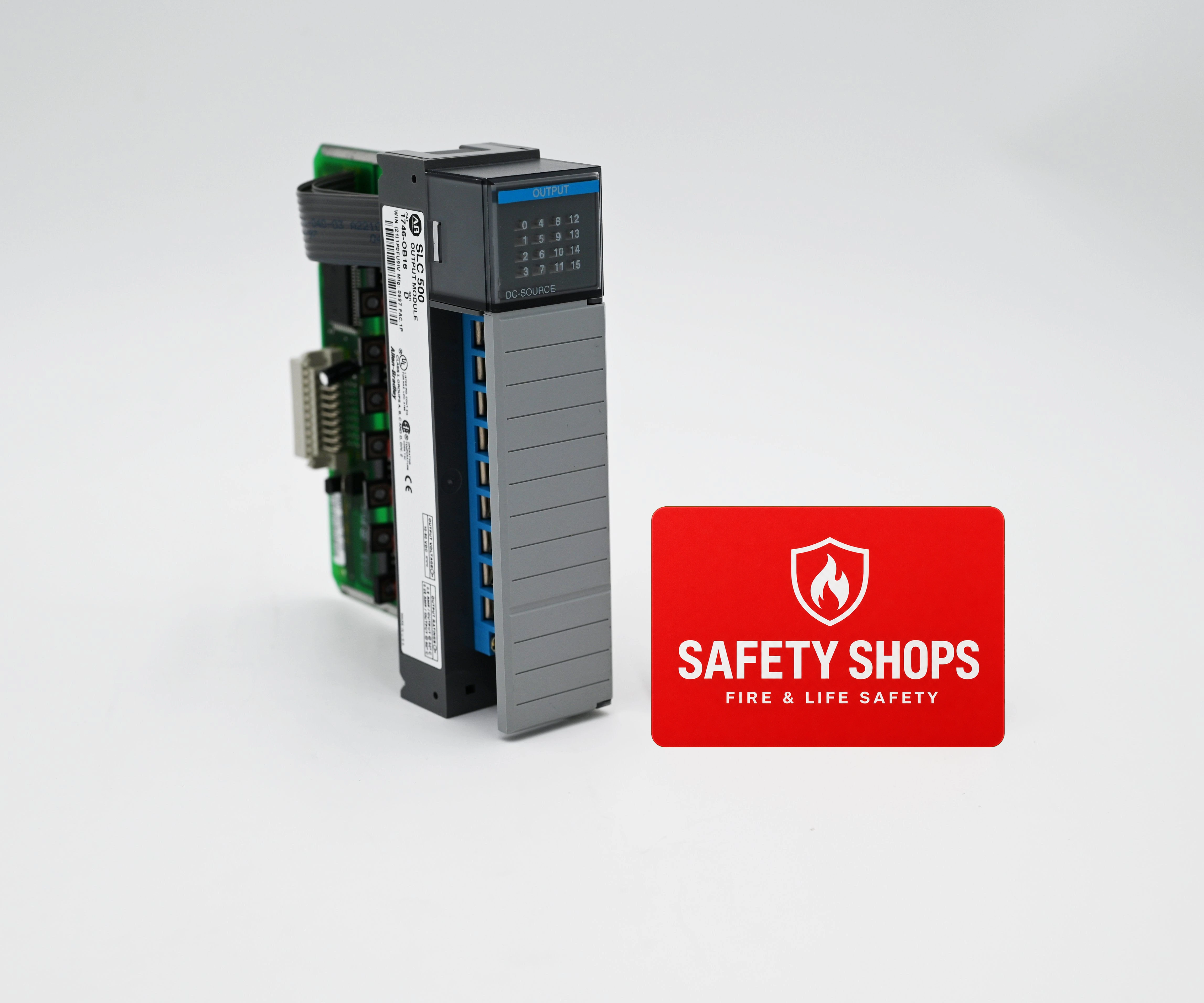

Description The Allen-Bradley 1746-OB16 is a 16-channel DC digital output module for the SLC 500 platform. It provides sourcing (positive) 24 VDC outputs designed to energize field devices such as solenoids, relays, contactors, pilot lights, and other discrete loads. With an operating voltage range of 10–30 VDC and fast switching response, the 1746-OB16 is a reliable, versatile option for industrial automation applications.     Technical Specifications Condition New / Never Used Surplus Brand Allen-Bradley Series SLC 500 Part Number 1746-OB16 Manufacturer Rockwell Automation Module Type Digital DC Output Module (Sourcing) Number of Outputs 16 Output Type Sourcing (Positive) Output Voltage 24 VDC nominal Operating Voltage Range 10–30 VDC Continuous Current per Point 1.5 A @ 30 °C; 1.0 A @ 55–60 °C Continuous Current per Module 6.4 A total OFF-State Leakage Current 1 mA ON-to-OFF Delay 0.1 ms OFF-to-ON Delay 1.0 ms Voltage Isolation 1500 V AC tested Backplane Current Draw (5V) 135–280 mA (varies by source) Heat Dissipation 7.6 W Shock Rating 30G Vibration Rating 2.5G @ 57–200 Hz Operating Temperature 0–60 °C Storage Temperature –40 to 85 °C Approvals UL, CSA, Class I Div 2, CE Compatible Chassis All SLC 500 1746 racks Applications DC load control, solenoids, relays, contactors, indicators       Information About 1746-OB16 The 1746-OB16 is a high-performance DC output module designed for the Allen-Bradley SLC 500 system. It features sixteen sourcing output points organized into a single group and powered directly through the SLC backplane, requiring no external power supply for operation. Each output channel can supply up to 1.5 A at 30 °C (1.0 A at 60 °C), enabling control of a wide range of industrial loads. This module supports fast switching, featuring an ON-to-OFF delay of 0.1 ms and an OFF-to-ON delay of 1.0 ms, making it suitable for both standard and high-speed applications. It provides optical isolation between the backplane and output circuitry, tested at 1500V AC, ensuring reliable operation in electrically noisy environments. Key Features: Sixteen (16) sourcing 24 VDC output channels Single output group; no individual isolation Operating voltage range: 10–30 VDC ON/OFF switching delays as fast as 0.1–1.0 ms Optical isolation from backplane Backplane-powered—no external supply required Output current per point: up to 1.5 A (30 °C) Output current per module: up to 6.4 A LED status indication for each output Compatible with all SLC 500 chassis and remote I/O setups The Allen-Bradley 1746-OB16 is a reliable digital output solution for controlling DC-powered field devices in SLC 500 automation systems. With high current capacity and fast switching response, it is well suited for machine control, discrete manufacturing, packaging, conveying systems, and building automation. It offers long-term durability and easy integration into existing SLC architectures.

Brand: Allen-Bradley · Category: HMIs & Displays

Key features

• Sixteen (16) sourcing 24 VDC output channels
• Single output group; no individual isolation
• Operating voltage range: 10–30 VDC
• ON/OFF switching delays as fast as 0.1–1.0 ms
• Optical isolation from backplane
• Backplane-powered—no external supply required
• Output current per point: up to 1.5 A (30 °C)
• Output current per module: up to 6.4 A
• LED status indication for each output
• Compatible with all SLC 500 chassis and remote I/O setups

Specifications

Contact Safety Shops for pricing, delivery and project support in the UAE.
