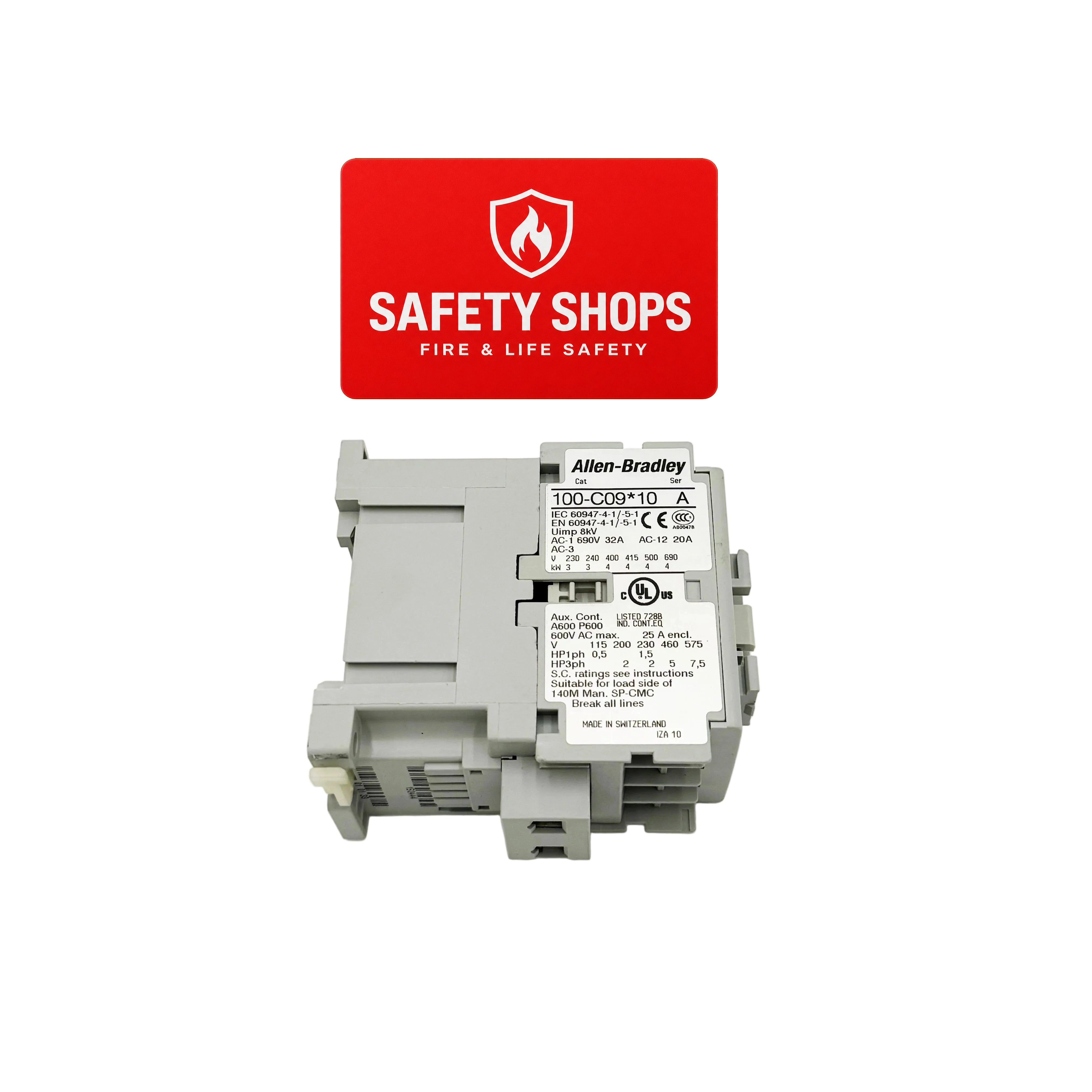

100-C09 | Allen-Bradley 3-Phase IEC Rated Contactor
Allen-Bradley · HMIs & Displays
Description The Allen-Bradley 100-C09 is a compact IEC-rated contactor designed for 3-phase power control applications with a rated current of 25 Amps and a voltage rating of up to 600 VAC. It features a 120V AC coil and includes one normally open (1 NO) auxiliary contact for signaling or interlock functions. Technical Specifications Condition New/Never Used Surplus Brand Allen-Bradley Category Motor Control Part Number 100-C09 Subcatecory IEC Contactors Phases 3 Number of Poles 4 Voltage Rating 600 Volts AC Current Rating 25 Amps Coil Voltage 120 Volts Contacts 1 NO Dimension 8 x 8 x 8 inches Weight (approx.) 4 Pounds Mounting DIN Rail Information About 100-C09 The 100-C09 is part of the Allen-Bradley 100 contactor series, offering compact dimensions and robust switching capabilities for motors and resistive loads. It supports 3-phase operation with a 4-pole configuration and is mounted on a DIN rail for easy panel integration. The contactor operates on a 120V AC coil and is rated for up to 25 A at 600 VAC, making it suitable for medium-duty control tasks. With CE, UL, and CSA compliance (as applicable to the series), it supports global installation standards. Key Features: 3-Phase Control: supports 3-phase systems with a 4-pole contact configuration. High Voltage Rating: rated up to 600 VAC for a broad range of motor and control applications. 25 Amp Capacity: suitable for switching moderate loads such as small motors or heaters. 120V Coil Voltage: standard AC coil voltage for industrial control circuits. Integrated Auxiliary Contact: includes 1 NO auxiliary for status feedback or interlock logic. DIN Rail Mountable: allows quick and secure installation in control enclosures. The 100-C09 provides compact, dependable power switching with 3-phase support and integrated auxiliary contact functionality in a DIN-mountable form.
Brand: Allen-Bradley · Category: HMIs & Displays
Key features
- 3-Phase Control: supports 3-phase systems with a 4-pole contact configuration.
- High Voltage Rating: rated up to 600 VAC for a broad range of motor and control applications.
- 25 Amp Capacity: suitable for switching moderate loads such as small motors or heaters.
- 120V Coil Voltage: standard AC coil voltage for industrial control circuits.
- Integrated Auxiliary Contact: includes 1 NO auxiliary for status feedback or interlock logic.
- DIN Rail Mountable: allows quick and secure installation in control enclosures.
Specifications
| Manufacturer part number | 100-C09 |
|---|---|
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Motor Control |
| Part Number | 100-C09 |
| Subcatecory | IEC Contactors |
| Phases | 3 |
| Number of Poles | 4 |
| Voltage Rating | 600 Volts AC |
| Current Rating | 25 Amps |
| Coil Voltage | 120 Volts |
| Contacts | 1 NO |
| Dimension | 8 x 8 x 8 inches |
| Weight (approx.) | 4 Pounds |
| Mounting | DIN Rail |
| Product type | IEC Contactors |
